Single-phase IP PDU Meter With Magnetic Latching Relay 8 ports
JSY1053+JSY1054*2



Description:

  • Professional-grade network remote monitoring and management power distribution system is the latest scientific research achievement in the field of power distribution technology after years of dedicated research. This product is based on the development trend of the world’s future power distribution monitoring and management technology, combined with the technical requirements of the modern data center application environment, and adopts the latest core technology with completely independent intellectual property rights, as well as network communication, power distribution, and electric energy metering technologies to design the latest network remote monitoring and management power distributor.
  • This device refers to the following standards:
  • Q/GDW 1354-2013 “Smart Electricity Meter Functional Specifications”.
  • GB/T 17626.2-2018 Electromagnetic compatibility test and measurement technology – Electrostatic discharge immunity test.
  • GB/T 17626.3-2023 Electromagnetic compatibility test and measurement technology f- Radio frequency electromagnetic field radiation immunity test .
  • GB/T 17626.4-2018 Electromagnetic compatibility test and measurement technology – Electrical fast transient pulse group immunity test .
  • GB/T 17626.5-2019 Electromagnetic compatibility test and measurement technology – Surge (impact) immunity test .
  • GB/T 17626.8-2006 Electromagnetic compatibility test and measurement technology – Power frequency magnetic field immunity test .
  • MODBUS-RTU communication protocol.

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

With our excellent administration, potent technical capability and strict top quality control technique, we go on to provide our consumers with trusted quality, reasonable price ranges and fantastic providers. We intention at becoming one among your most trusted partners and earning your fulfillment for Current Draw Meter , Car Charging Pile , Pdu , We are sincerely looking forward to cooperate with customers all over the world. We believe we can satisfy with you. We also warmly welcome customers to visit our factory and purchase our products.
IP PDU Meter Manufacturer | JSY-MK Detail:

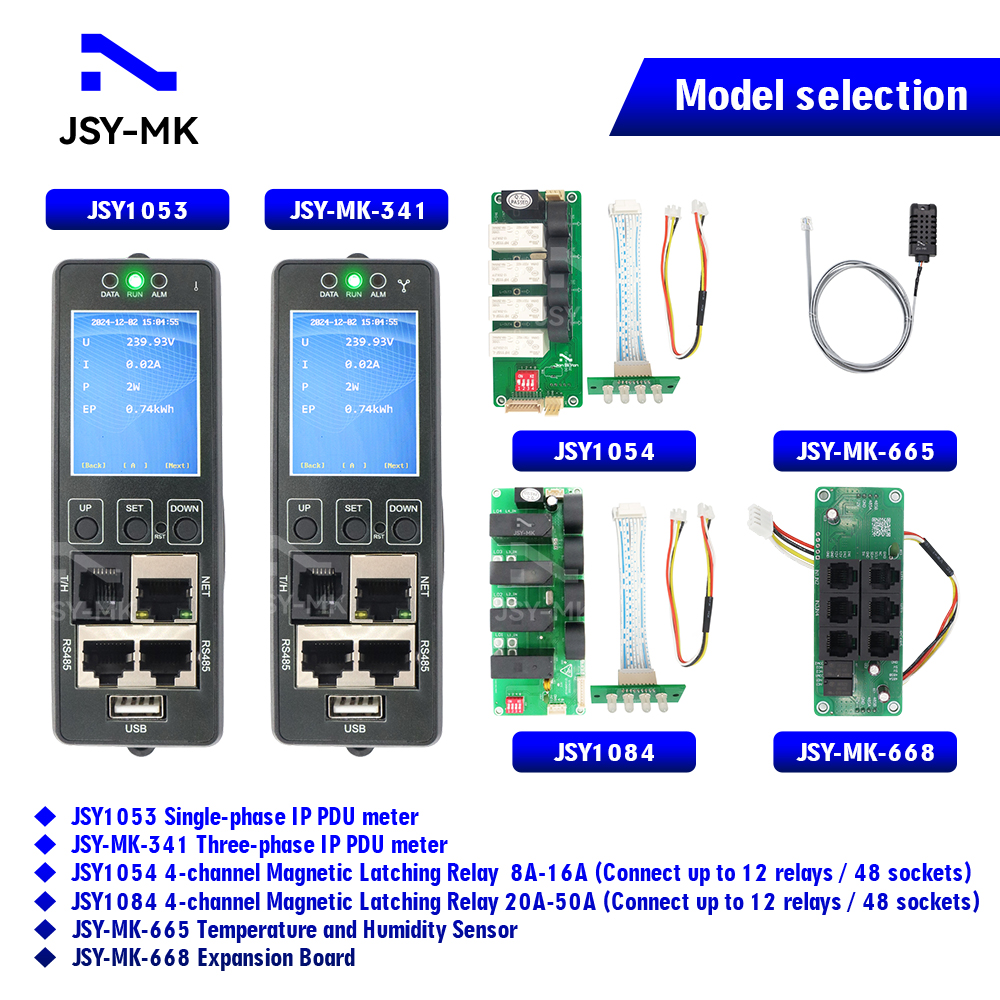

IP PDU Product Components

ip pdu meter

Module No.: JSY1053

  • Single-phase IP PDU meter
  • ①2.0-inch LCD display
  • ②Ethernet port * 1
  • ③RS485 port * 2
  • ④Temperature and humidity port * 1
  • ⑤Input Voltage: 176-264V
  • ⑥Input Maximum total load current: 63A
  • ⑦Output voltage: 176-264V
  • ⑧Output current: 8A, optional high current 20A
  • ⑨Output Bits: Optional, magnetic latching relays up to 36 bits.
  • ⑩Frequency: 50Hz or 60Hz
  • ⑪Measurement parameters: Voltage, Current, Power, Power Factor, Energy, Frequency
  • ⑫Accuracy : ±1%
JSY1054

Module No.: JSY1054

4-channel Relay Control Module

  • ①Single-phase 220V AC input
  • ②4-channel 16A current detection
  • ③4-channel 16A magnetic retention relay control
  • ④4-channel indicator output
  • ⑤Accuracy: ±1%
Relay

Module No.: JSY1084

4-channel Relay Control Module

  • ①Single-phase 220V AC input
    ②4-channel 50A current detection
    ③4-channel 50A magnetic retention relay control
    ④4-channel indicator output
    ⑤Accuracy: ±1%

IPDU Product Introduce

  • Single-phase and three-phase smart PDU meters are based on the innovative SUM (sustainable, scalable and maintainable) design concept technology. As a key component of the metering cabinet power distribution unit (PDU), after being installed into the main body of the PDU, it can Provides active metering capabilities for energy optimization and circuit protection. User-set alarm thresholds can effectively reduce risks by warning of potential circuit overloads through real-time local and remote alarms. Metered rack PDUs provide power usage data to support data center managers in making informed decisions about load balancing and proper IT sizing, thereby significantly reducing total cost of ownership. Users can configure metered cabinet PDU via Ethernet access or RS485. This series of products can be widely used in data center rooms such as IDC, banks, securities, governments, and enterprises.
ip pdu meter
ip pdu meter
ip pdu meter
relay control module
ip pdu meter
IP PDU meter wiring

IPDU Product Network Functions Interface Show

  • - Support WEB method to log in to the management page, and use user name + password to realize the login function.
  • - The interface includes the main interface, output information interface, sensor information interface, network setting interface, device information interface, user management interface and factory reset interface.
Intelligent IP PDU Meter web page
Intelligent IP PDU Meter web page
Intelligent IP PDU Meter web page
Intelligent IP PDU Meter web page
Intelligent IP PDU Meter application
