JSY-MK-229 DC 100A Single Phase RS-485 Din Rail Solar Energy Meter

JSY-MK-229

Description:

Measurement accuracy meets the class 1 accuracy standard of IEC62053-21.
Accurate measurement of voltage, current, power, electricity and other parameters.
External Wire Shunt.
1 channel RS-485 communication interface.
Adopt Modbus-RTU protocol.
RMS measurement method, special power measurement chip.
Can be customized according to product features.

Contact

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Underlying Parameter

Measured parameters:
Product model:	JSY-MK-229
Voltage range:	1-400V ±0.5%F.S
Current range：	50mA-100A ±0.5%F.S
Voltage resolution:	0.01V
Current resolution:	0.01A
Measurement Parameters:	Voltage Current Active Power Active Power Power Factor Frequency Temperature Humidity
Active power：	IEC62053-21 classes 1 Units 1W
Electric energy：	IEC62053-21 classes 1 Units 0.01kWh

Communication parameter
Interface type:	RS485
Communication protocol:	Modbus-RTU
Data format：	N,8,1
Communication bps:	Default 9600bps
Mailing address:	Default correspondence address No. 1

Product performance
Product power consumption:	Less than 20mA
Power supply:	DC 12-36V
Work environment：	-20~+60℃
Size:	90.236.356.5 mm

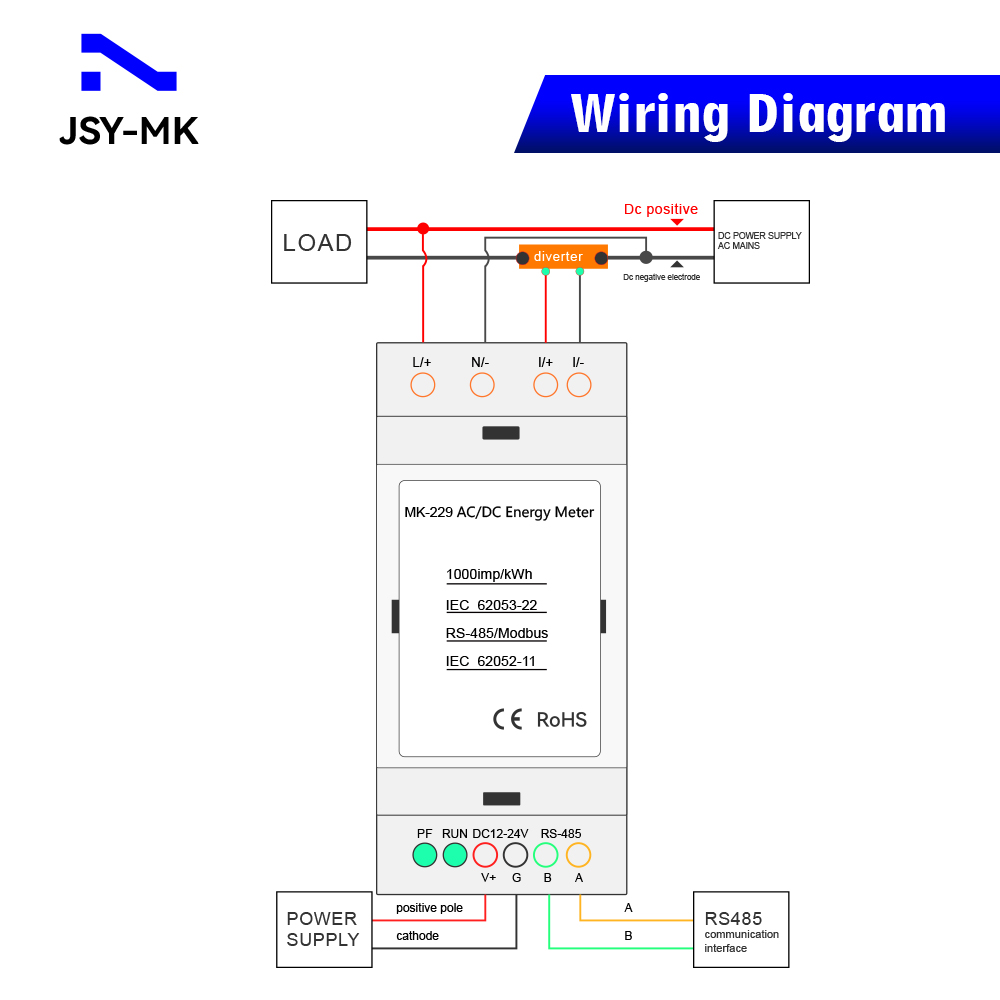

Wiring and hole position description
