JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module

JSY-MK-333G





Description:

  • The measurement accuracy meets the level 1 accuracy standard in IEC62053-21.
  • Collect Values: voltage, current, power, energy, power factor frequency, etc.
  • 1 RS485 Modbus-RTU communication.
  • Reliable and safe screw installation.
  • Can be used with onboard CTs or external lead CTs.
  • Product functions can be customized as needed.

Product Detail

OEM/ODM SERVICES

CUSTOMER SERVICES

Product Tags

Related Video

Feedback (2)

We enjoy a very good reputation among our customers for our excellent product quality, competitive price and the best service for Charging Point , Voltmeter Voltage Ammeter , Power Meter Industrial , The continual availability of high grade products in combination with our excellent pre- and after-sales service ensures strong competitiveness in an increasingly globalized market.
JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module Detail:

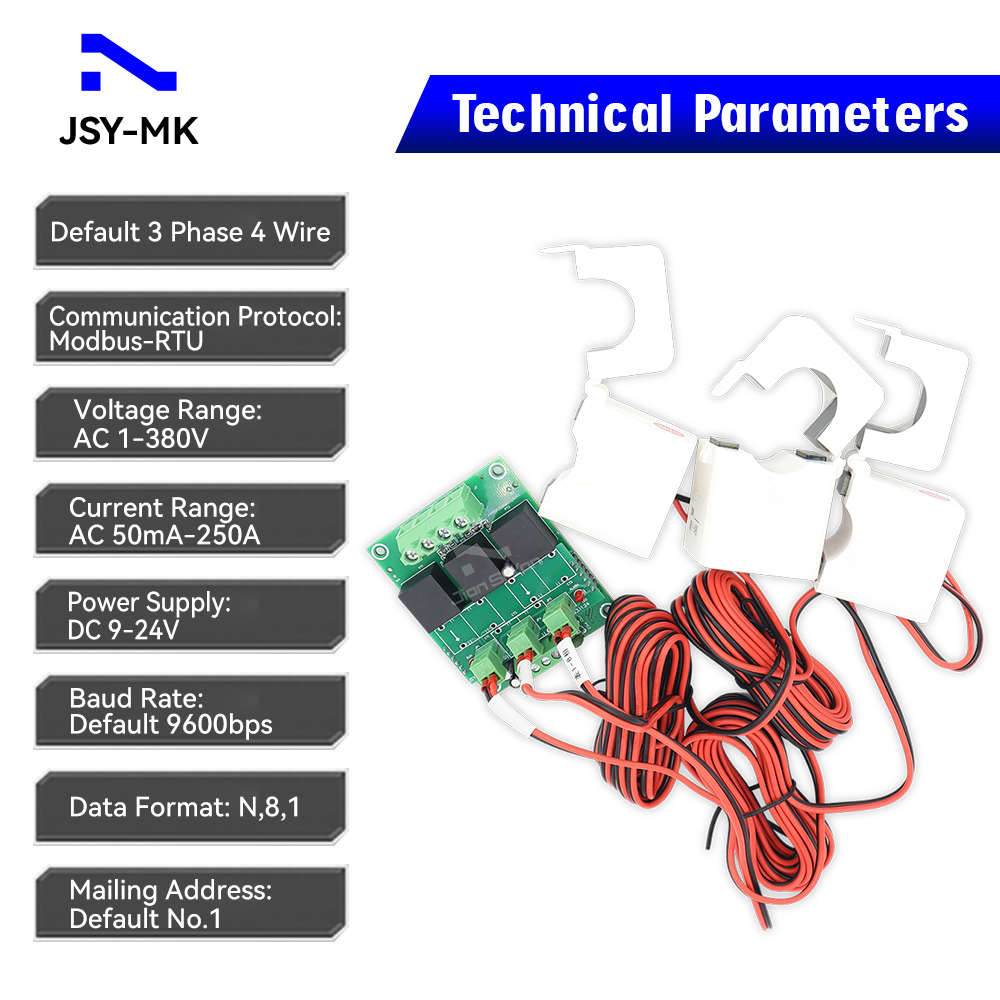

Underlying Parameter

Measured parameters:
Product model: JSY-MK-333G
Voltage range: AC 3*220/380V  ±0.5%F.S
Current range： AC 3*5 (250) A  ±0.5%F.S
Phase voltage measurement range: 1-300V
Voltage resolution: 0.01V
Current resolution: 0.01A
Active power： IEC62053-21 classes 1  Units 1W
Electric energy： IEC62053-21 classes 1  Units 0.01kWh
Communication parameter
Interface type: 1 channel RS485
Communication protocol: Modbus-RTU
Data format： N,8,1
Communication baud rate: Default 9600bps
Mailing address: Default number 1
Product performance
Product power consumption: ≤20mA
Power supply: DC 9-24V
Work environment： -30~+70℃

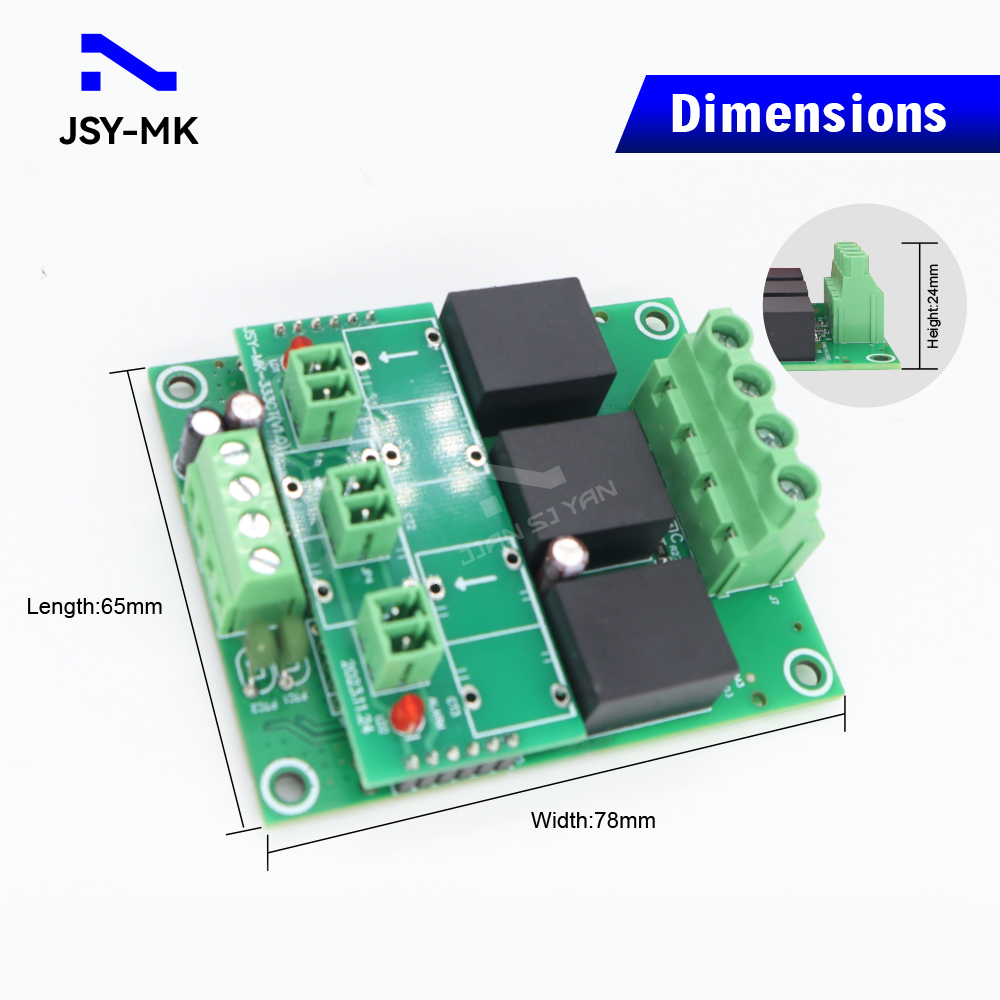

Size: 78*65*24mm

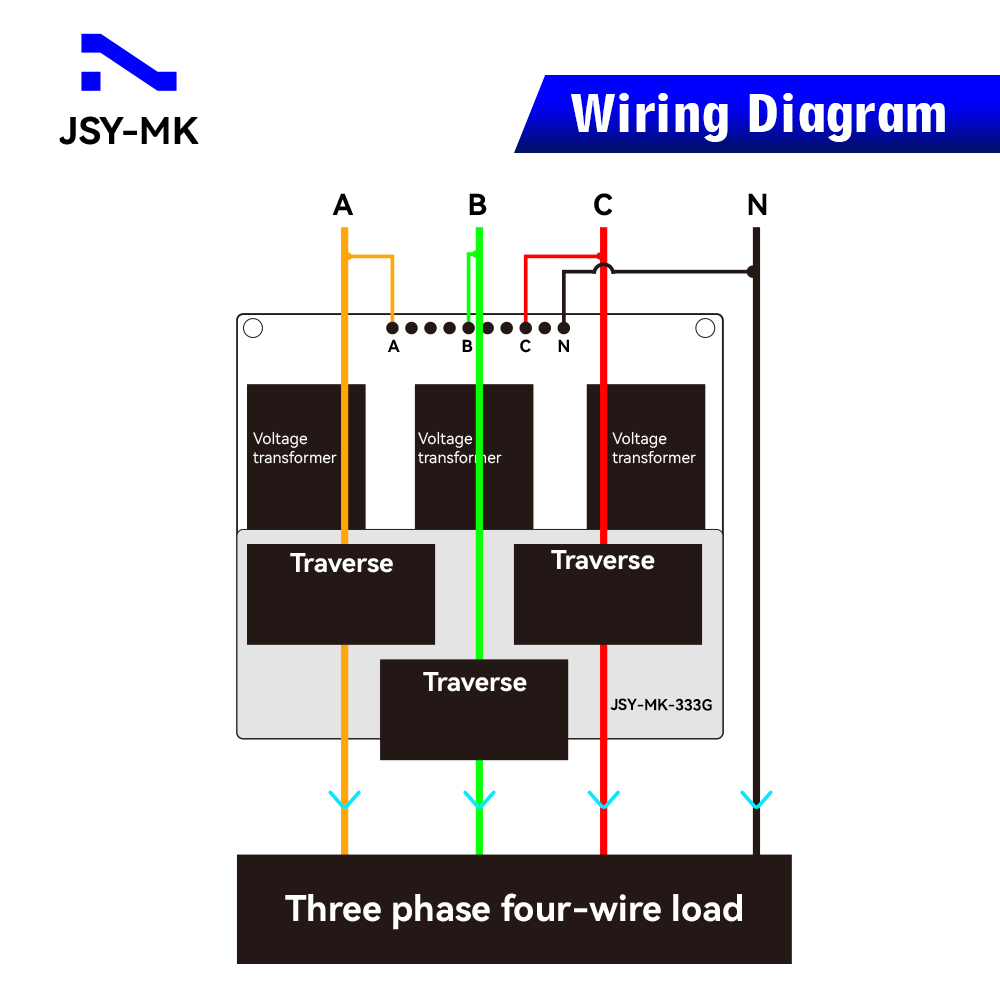

Wiring and hole position description

jsy-mk-333

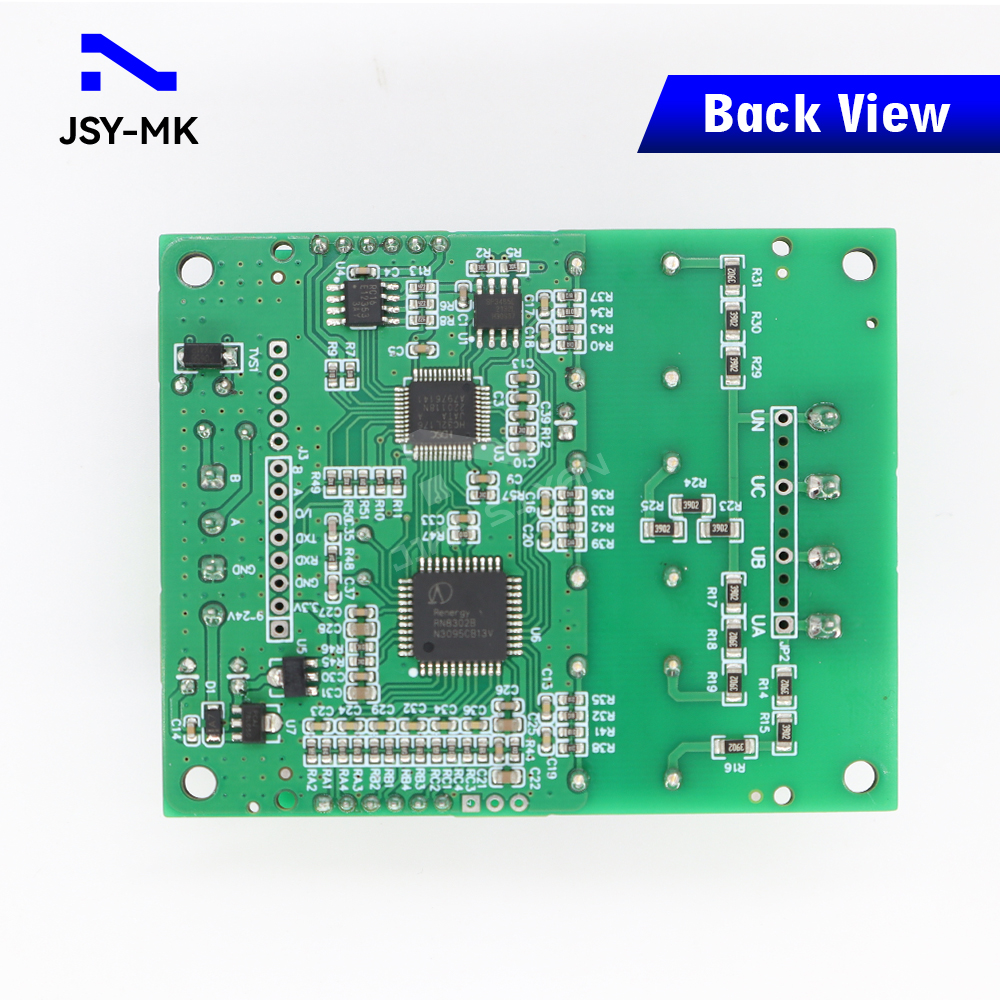

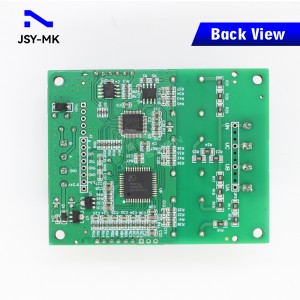

Product detail pictures:

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures

JSY-MK-333G 250A Three Phase AC Bidirectional Energy Metering Module detail pictures
