Intelligent PDU Meter Header
[ Adapt to 1 Phase and 3 Phase ]
①TFT color screen with full display angle (2.0 inches)
②Ethernet port (1 way)
③IN OUT cascade port (1 way, RS485 communication)
④6 RJ11 ports (sensors 4 inputs and 2 outputs)
⑤Hot-swappable port
Three Phase Power Meter Module
①Voltage: Three Phase 220V AC
②Current: 5~63A
③Power range: AC 85V~265V (from A phase)
④Frequency: 50/60Hz
⑤Communication interface: RS-485
⑥Accuracy level: Grade 1

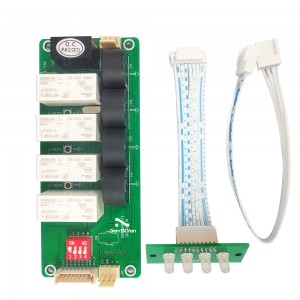

4-circuit Metering Control Type Auxiliary Module (Magnetically Held Relay)
①Single-phase 220V AC input
②4-way 16A current detection
③4-way 16A magnetic retention relay control
④4-way indicator output
⑤Accuracy level: Grade 1
1) Product access methods include WEB, SNMP (V1/V2c V3 ) (not available in the first version of V3 , and can be achieved through upgrading), Telnet/MODBUS-RTU, etc. It has a USB hot-swappable WiFi module and complies with the WIFI wireless communication standard .
2) The product has the functions of monitoring total voltage, total current, total power, total electric energy, each branch voltage, current, power, electric energy, power factor, etc..
3) The product has the function of switching and controlling branch circuits, timer switching function and delayed start function, and can be set through the WEB login management software.
4) It has peripheral access ports such as temperature, humidity, smoke, water immersion detection, access control, etc., with at least 4 switch input ports and 2 output ports . the functions can be set through management software.
5) It has the function of pressing the button to switch the LCD to display the above parameters.
6) Product cascading function enables cascading of up to 1 master and 4 slaves, enabling simultaneous access and control of up to 5 modules through the same IP address.
7) You can customize the upper and lower alarm thresholds for total/branch circuit current, voltage, and power, and the upper and lower alarm thresholds for temperature and humidity.
8) Data local storage function: the storage time length of current, voltage, power, electric energy, temperature and humidity can be customized, up to 12 sets of data can be saved every day, and the maximum storage time is 90 days.
9) Local alarm function: Each branch is independently configured with a display function. Normal power supply displays green, and the yellow light flashes when there is a fault. the buzzer alarms, the LCD interface screen flashes, and alarm items are displayed.
10) When the software background alarms, the corresponding alarm bit displays red fonts. You can send an email to the administrator's mailbox through the setting item, and SNMP sends TRAP alarm status information.
11) User management permissions can be allocated to 5 different user management permissions corresponding to five login accounts .
